Tweevoudige kegelsmeernippels
tweevoudige kegelsmeernippels
- Gemaakt van staal, gezinkt en gepassiveerd
- Met geharde kop volgens de DIN-norm
- optioneel beschikbaar als :
- H2-tweevoudig met 67° hoek / zeshoekige body
- H3-drievoudig met 90° hoek / vierkante body

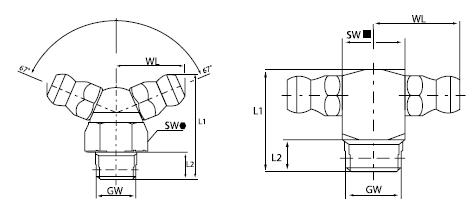

- GW = schroefdraad
- L1 = algemene lengte
- L2 = schacht lengte
- WL = hoek lengte
- SW = HEX grootte
- (alle eenheden in mm, schroefdraadmeting of inches)
VERSCHILLENDE TOEPASSINGEN
Optioneel alternatieve smering door tweevoudige kop.
|
GW M 6 x 1.0 |
|
|
|
Ref.- No.: |
|
||||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel (staal) |
Brass (messing) |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14.5 |
90° |
9 mm SQ. |
|
5244179 |
|
|
|
|
GW M 8 x 1.0 |
|
|
|
Ref.- No.: |
|
||||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14.5 |
90° |
9 mm SQ. |
|
5244178 |
|
|
|
|
18 |
5.5 |
14.5 |
90° |
11 mm SQ. |
|
5244181 |
|
|
|
|
20 |
5.5 |
13.5 |
67° |
11 mm HEX |
|
5244159 |
|
|
|
|
GW M 6 x 1.25 |
|
|
|
Ref.- No.: |
|
||||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14.5 |
90° |
9 mm SQ. |
|
5244096 |
|
|
|
|
20 |
5.5 |
13.5 |
67° |
11 mm HEX |
|
5244160 |
|
|
|
|
24 |
5.5 |
14.5 |
90° |
9 mm SQ. |
|
5244033 |
|
|
|
|
GW M 10 x 1.0 |
|
|
|
Ref.- No.: |
|
||||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
15 |
90° |
11 mm SQ. |
|
5244094 |
|
5244134 |
|
|
20 |
5.5 |
13.5 |
67° |
11 mm HEX |
|
5244161 |
|
|
|
|
22 |
7 |
13.5 |
67° |
11 mm HEX |
|
5244163 |
|
|
|
|
GW R 1/8, 1/8 - 28 BSP |
|
|
|
Ref.- No.: |
|
||||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
15 |
90° |
11 mm SQ. |
|
5244095 |
|
|
|
|
20 |
5.5 |
13.5 |
67° |
11 mm HEX |
|
5244162 |
|
|
|
