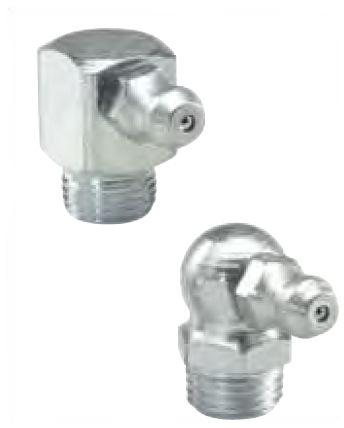

Kegelsmeernippels voor getapte gaten 90°
Type H3
kegelsmeernippel
- Volgens DIN-norm 71412
- Haaks-type C/90°
- Standaardtypes volgens de DIN-norm zijn gemaakt van staal en zijn gehard, verzinkt en gepassiveerd met geharde kop
- Met tapse(konische) schroefdraad
- Voor andere materialen of samenstellingen ; zie tabel of vraag ons gerust om meer informatie
- GW = schroefdraad
- L1 = algemene lengte
- L2 = lengte schroefdraad
- WL = lengte hoek
- W = hoek
- SW = HEX grootte
- (alle eenheden in mm, schroefdraadmeting of inches)
|
GW M 5 x 0.8 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel (staal) |
Brass (messing) |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300901 |
|
|
|
|
GW M 6 x 0.75 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14 |
90° |
9mm SQ. |
|
1304503 |
|
|
|
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300903 |
|
|
|
|
GW M 6 x 1.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14 |
90° |
9mm SQ. |
|
1304504 |
|
|
|
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300904 |
1310904 |
1320904 |
1341630 |
|
GW M 7 x 1.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300905 |
|
|
|
|
GW M 8 x 0.75 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm SQ. |
|
1300906 |
|
|
|
|
GW M 8 x 1.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300907 |
1310907 |
1320907 |
1340907 |
|
18 |
5.5 |
14 |
90° |
9mm SQ. |
|
1304507 |
|
|
|
|
GW M 8 x 1.25 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
14 |
90° |
9mm SQ. |
|
1304508 |
|
|
|
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300908 |
1310908 |
1320908 |
|
|
GW M 10 x 1.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
15 |
90° |
11mm SQ. |
|
1304709 |
|
|
|
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301109 |
1311109 |
1321109 |
1341109 |
|
42 |
7 |
15 |
90° |
11mm SQ. |
|
5242092 |
|
|
|
|
GW M 10 x 1.25 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301110 |
|
|
|
|
GW M 10 x 1.5 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301111 |
|
1321111 |
|
|
GW M 12 x 1.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
5.5 |
14 |
90° |
14mm HEX |
|
1301412 |
|
|
|
|
GW M 12 x 1.5 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301414 |
|
|
|
|
GW M 12 x 1.75 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301415 |
|
|
1341415 |
|
GW M 14 x 1.5 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301417 |
|
|
|
|
GW M 14 x 2.0 |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301419 |
|
|
|
|
GW R 1/8, 1/8 - 28 BSP |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
15 |
90° |
11mm SQ. |
|
1304756 |
|
|
|
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301156 |
1311156 |
1321156 |
1341156 |
|
42 |
7 |
15 |
90° |
11mm SQ. |
|
5242093 |
|
|
|
|
GW R 1/4, 1/4 - 19 BSP |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301457 |
1311457 |
1321457 |
1341457 |
|
GW R 3/8, 3/8 - 19 BSP |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
7 |
19 |
90° |
17mm HEX |
|
1301758 |
|
|
|
|
GW 1/8" - 27 NPT/PTF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
15 |
90° |
11mm SQ. |
|
1304767 |
|
|
|
|
GW 1/4" - 18 NPT/PTF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301468 |
|
|
|
|
GW 1/4" - 26 BSF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300944 |
1310944 |
1320944 |
|
|
GW 1/4" - 28 NF/UNF/SAE |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300937 |
1310937 |
1320937 |
|
|
GW 1/4" BSW |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300950 |
|
1320945 |
|
|
GW 5/16" - 22 BSF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300945 |
|
|
|
|
GW 5/16" - 24 NF/UNF/SAE |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300938 |
|
|
|
|
GW 5/16" BSW |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
18 |
5.5 |
13 |
90° |
9mm HEX |
|
1300951 |
|
|
|
|
GW 3/8" - 18 NPT/PTF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
7 |
19 |
90° |
17mm HEX |
|
1301760 |
|
|
|
|
GW 3/8" - 20 BSF |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301146 |
|
|
|
|
GW 3/8" - 24 NF/UNF/SAE |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301139 |
|
|
|
|
GW 3/8" BSW |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
20 |
5.5 |
14 |
90° |
11mm HEX |
|
1301152 |
|
|
|
|
GW 1/2" - 20 UNF/NF/SAE |
|
|
|
Ref.- No.: |
|
|
|||
|
L1 |
L2 |
WL |
W |
SW |
|
Steel |
Brass |
V2A (inox) |
V4A (inox) |
|
22 |
6.5 |
14 |
90° |
14mm HEX |
|
1301440 |
|
|
|
