EP
434 - PFN/2.OP -

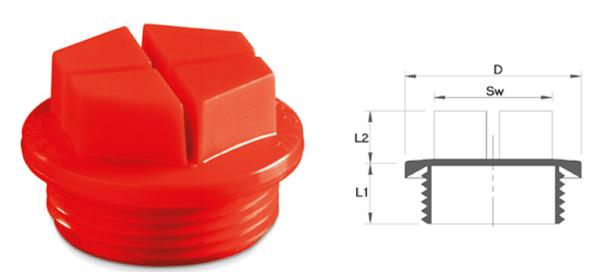

beschermingskap met schroefdraad
Gebruikt om gaten met schroefdraad te beschermen.
|
Code |
metrische
schroefdraad |
Afmetingen |
|||
|
|
|
D |
L1 |
L2 |
SW |
|
EP434/ M10x1 |
M
10x1 |
14,2 |
7 |
10 |
10 |
|
EP434/ M12x1,5 |
M
12x1 |
17,2 |
10 |
10 |
13 |
|
EP434/ M14x1,5 |
M
14x1,5 |
19,2 |
10 |
10 |
13 |
|
PFN/2.0/16.15P |
M
16x1,5 |
22 |
10 |
10 |
17 |
|
PFN/2.0/18.15P |
M
18x1,5 |
24 |
10 |
11 |
17 |
|
PFN/2.0/20.15P |
M
20x1,5 |
26 |
10 |
14 |
18 |
|
PFN/2.0/22.15P |
M
22x1,5 |
27,2 |
10 |
14 |
18 |
|
EP434/ M24x1,5 |
M
24x1,5 |
31,5 |
12 |
14 |
24 |
|
EP434/ M26x1,5 |
M
26x1,5 |
32 |
10 |
14 |
24 |
|
EP434/ M27x2 |
M
27x2 |
32,3 |
13 |
14 |
24 |
|
EP434/ M33x2 |
M
33x2 |
40,4 |
13 |
14 |
27 |
|
EP434/ M42x2 |
M
42x2 |
50 |
13 |
15 |
36 |
|
|
GAS (BSP) |
|
|
|
|
|
EP434/ 1/8” |
G
1/8” |
16,8 |
9 |
10 |
13 |
|
PFN/2.0/14P |
G
1/4" |
19,2 |
9 |
10 |
13 |
|
PFN/2.0/38P |
G
3/8” |
22,2 |
9 |
11 |
17 |
|
PFN/2.0/12P |
G
1/2" |
27,2 |
12 |
13 |
19 |
|
EP434/ 3/4" |
G
3/4" |
32,3 |
12 |
13 |
24 |
|
EP434/1” |
G
1” |
40 |
15 |
14 |
27 |
|
EP434/1 ¼” |
G
1 ¼” |
50,4 |
15 |
15 |
36 |
|
EP434/ 1 ½” |
G
1 ½” |
55,4 |
15 |
15 |
41 |
|
EP434/ 2” |
G
2” |
68,4 |
15 |
15 |
55 |
