Bevestigingsas

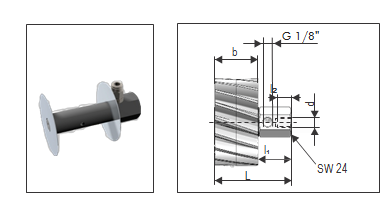

aansluiting 90 ° voor PU tandwiel
|
Artikelnummer |
Module |
L |
L1 |
L2 |
d1 |
d |
b |
|
D.VTBA.M2-90° |
2 |
51,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
20 |
|
D.VTBA.M3-90° |
3 |
61,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
30 |
|
D.VTBA.M4-90° |
4 |
71,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
40 |
|
D.VTBA.M5-90° |
5 |
81,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
50 |
|
D.VTBA.M6-90° |
6 |
91,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
60 |
|
D.VTBA.M8-90° |
8 |
111,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
80 |
|
D.VTBA.M10-90° |
10 |
131,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
100 |
|
D.VTBA.M12-90° |
12 |
151,0 |
30,0 |
10,0 |
M8 |
G1/8’’ |
120 |
Andere afmetingen op
aanvraag
