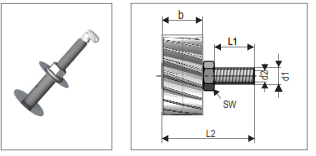

Bevestigingsas aansluiting
180 ° voor
PU tandwiel
Standaard artikels
|
Artikelnummer |
Module |
L2 |
L1 |
SW |
d1 |
D2 |
b |
|
D.VTBA.M2-180° |
2 |
61,0 |
30,0 |
17 |
M10 |
M6 |
20 |
|
D.VTBA.M3-180° |
3 |
71,0 |
30,0 |
17 |
M10 |
M6 |
30 |
|
D.VTBA.M4-180° |
4 |
81,0 |
30,0 |
17 |
M10 |
M6 |
40 |
|
D.VTBA.M5-180° |
5 |
116,0 |
49,0 |
24 |
M16 |
G1/8’’ |
50 |
|
D.VTBA.M6-180° |
6 |
126,0 |
49,0 |
24 |
M16 |
G1/8’’ |
60 |
|
D.VTBA.M8-180° |
8 |
146,0 |
49,0 |
24 |
M16 |
G1/8’’ |
80 |
|
D.VTBA.M10-180° |
10 |
166,0 |
49,0 |
24 |
M16 |
G1/8’’ |
100 |
|
D.VTBA.M12-180° |
12 |
186,0 |
49,0 |
24 |
M16 |
G1/8’’ |
120 |
Andere afmetingen op
aanvraag
