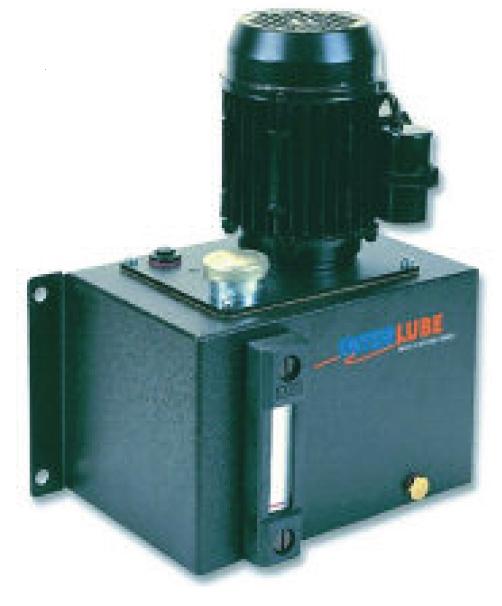

Reservoir-mounted gear pumps

Reservoirs are available in three standard sizes - 6, ,12 and 25 litres. Other sizes of reservoir can be provided by special arrangement. Interlube recommend that the ratio of the reservoir capacity in litres to the pump output in lt/min should not exceed 10:1.

Notes

Relief valve setting must not exceed maximum pressure of motorised pump (see previous details).
See previous pages for pump and motor details.

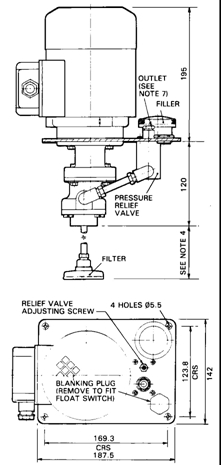

The mounting centres suit the standard range of reservoirs - 6, 12 and 25 lt. Other reservoirs are available to special order.
When supplied without reservoir, filter is supplied with 300 mm of tube to be cut to required length.
A float switch is available as an optional extra and must be ordered separately. To fit float switch remove the banking plug.
Outlet:
1/4 BSP/6mm OD for 0.5lt/min pump.
1/4 BSP/10mm OD for 3lt/min pump.


	Pump outlet (Nominal)	Mounting option	Voltage	Variations
Part No.	X	X	X	0
	0.5 lt/min 3 lt/min 9 lt/min 16 lt/min	Foot mounted Foot mounted with Relief Valve Foot mounted (R/Valve standard) Foot mounted with 6 lt Reservoir Foot mounted with 12 lt Reservoir Foot mounted with 25 lt Reservoir	110V, 1ph, 50Hz 240V, 1ph, 50Hz 380/440V, 3ph, 50/60 Hz 110V, 60 Hz 240V, 60 Hz

Notes

9 lt/min and 16 lt/min models not supplied plate mounted.
0.5 lt/min foot mounted model not available with integral relief valve.
Single phase only available on 0,5 lt/min pump.
IP54 Motors are standard.

Met reservoir 6 t.e.m. 25 L Q = 0,5 t.e.m. 16 L/min.

Reservoir-mounted gear pumps
