| 4196504 | |
| Type | standaard - sensor P |
| Doseerinterval | 2.0 - 26.0 cm³ |
| Gewicht (kg) | 2.4 |
| Koppeling (smeermiddel) binnendraad P | 1/4" BPS |
| Koppeling (smeermiddel) buitendraad P | 1/4" BPS |
| Koppeling (perslucht) Binnendraad 2 en 4 | 1/8" BPS |
| Druk uitgang binnen draad A | 1/4" BPS |
| Bevestigingsschroefdraad | 4 X M6 |
| Max. druk (smeermiddel)[bar] | 200 |
| Druk OUT (smeermiddel)[bar] |
80 |
| Min. druk perslucht[bar] | 5.0 |
| Optimale druk perslucht[bar] |
6.0 |
| Max. druk perslucht[bar] |
7.0 |
| specificatie smeermiddel | NLGI 3/Max 1000000 mPa.S |

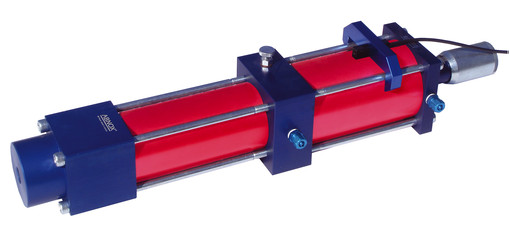

ABNOX Metering Valve Stations with Sensor present a low coast and hence frequently used solution for monitoring the dosage process.
This dispensing interrogation facilitates an optimal process supervision and guarantees a high service life through his robust construction.
These Metering Valve Stations are suitable in particular for large volume metering applications and offer a simple and
fast mounting option directly at the Metering Valve.
The Metering Valve Station is available in different dispensing ranges. The dosage chamber volume is continuously
adjustable by a screw adjustment. With the standard nozzles ABNOX constructs specific customised application
nozzles which can be directly screwed to metering valve.
Function: A proximity switch on the pneumatic control cylinder, and a magnetic ring attached to the pneumatic piston make up the control device
to monitor the function of the control pin of the metering valve. By detection of the pneumatic piston position (starting position),
the location of the control pin and the opened or closed state of the metering valve are determined.
