4190500
Type standaard - luchtgestuurd
Doseerinterval 30.0 - 500.0 cm³
Gewicht (kg) 17
Koppeling (smeermiddel) buitendraad P 3/8" BPS
Koppeling uitgang binnendraad A 3/8" BPS
Bevestigingsschroefdraad 2 X M8
Max. druk (smeermiddel)[bar] 150
Druk OUT (smeermiddel)[bar]
150
Min. druk perslucht[bar] 5.0
Optimale druk perslucht[bar]
6.0
Max. druk perslucht[bar]
7.0
specificatie smeermiddel NLGI 3/Max 1000000 mPa.S

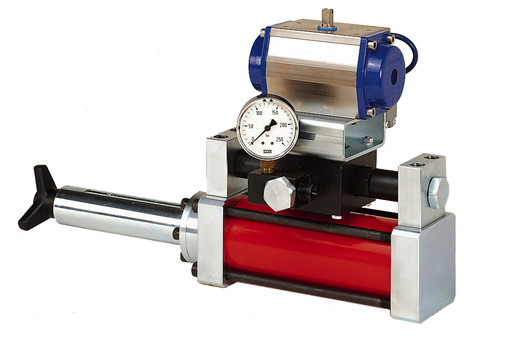

Metering Valve Stations with multi turn aktuators are ideal suitable for large-scale metering operations, e.g. for filling Roller bearings
or other large Bearings or Gear boxes.
BNOX Metering Valve Stations with Sensor present a low coast and hence frequently used
solution for monitoring the dosage process.

The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume.
The output can be adjusted continuously by hand. With the pneumatic-driven switch-over on top of the valve you can start the metering process.
A pressure gauge shows you the right inlet pressure.
