| 4190000 | |
| Type | standaard - handbediend |
| Doseerinterval | 30.0 - 500.0 cm³ |
| Gewicht (kg) | 14.6 |
| Koppeling (smeermiddel) buitendraad P | 3/8" BPS |
| Koppeling uitgang binnendraad A | 3/8" BPS |
| Bevestigingsschroefdraad | 2 X M8 |
| Max. druk (smeermiddel)[bar] | 150 |
| Druk OUT (smeermiddel)[bar] |
150 |
| Min. druk perslucht[bar] | 5.0 |
| Optimale druk perslucht[bar] |
6.0 |
| Max. druk perslucht[bar] |
7.0 |
| specificatie smeermiddel | NLGI 3/Max 1000000 mPa.S |

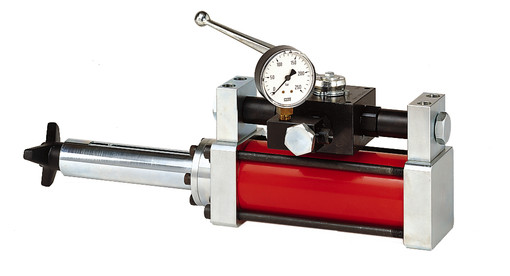

Metering Valve Stations with multi turn aktuators are ideal suitable for large-scale metering operations, e.g. for filling Roller bearings
or other large Bearings or Gear boxes.BNOX Metering Valve Stations with Sensor present a low coast and hence frequently used
solution for monitoring the dosage process.
The metering tolerance is maintained to better than +/- 2% in the middle range of dosage volume.
The output can be adjusted continuously by hand. With the pneumatic-driven switch-over on top of the valve you can start the metering process.
A pressure gauge shows you the right inlet pressure.
