Smeernippelblok in INOX /RVS/ V4A/316/1.4401
 |
 |

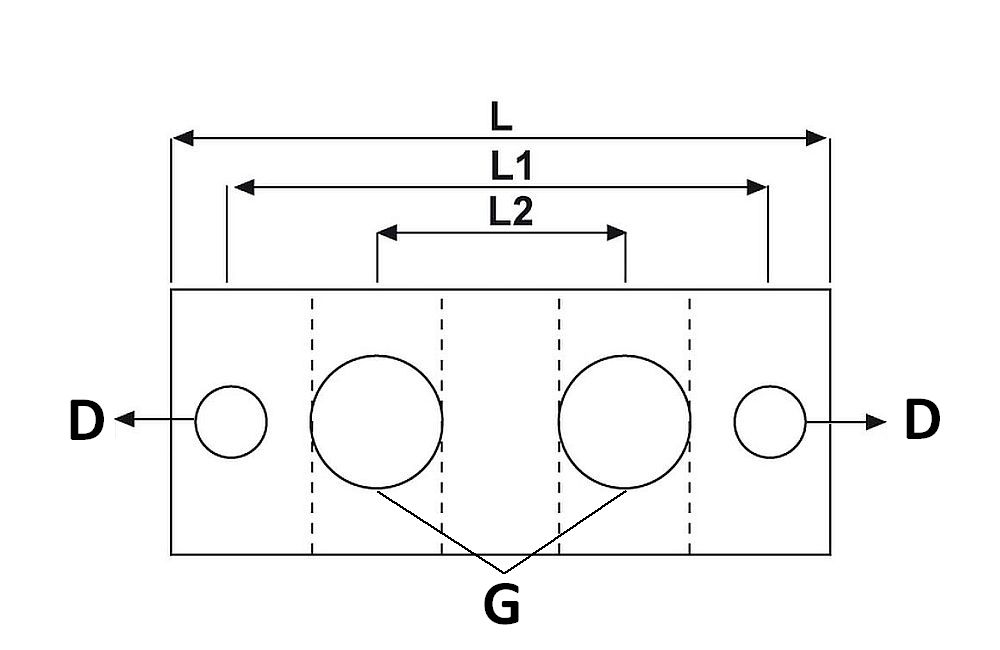

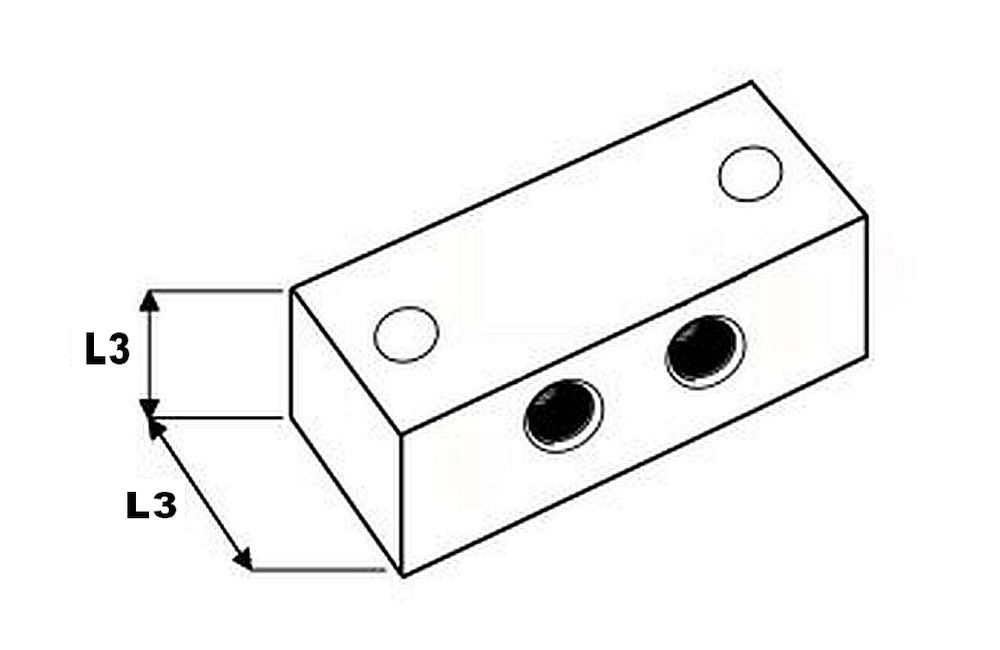

Afmetingen
| Artikelnr. | Uitgang | G | L | L1 | L2 | L3 | D |
| SNB*01XR02 | 1 | 1/8 BSP | 38 | 28 | 25 | 6,5 | |
| SNB*02XR02 | 2 | 1/8 BSP | 60 | 50 | 22 | 25 | 6,5 |
| SNB*03XR02 | 3 | 1/8 BSP | 84 | 74 | 22 | 25 | 6,5 |
| SNB*04XR02 | 4 | 1/8 BSP | 106 | 96 | 22 | 25 | 6,5 |
| SNB*05XR02 | 5 | 1/8 BSP | 128 | 118 | 22 | 25 | 6,5 |
| SNB*06XR02 | 6 | 1/8 BSP | 150 | 140 | 22 | 25 | 6,5 |
| SNB*08XR02 | 8 | 1/8 BSP | 194 | 184 | 22 | 25 | 6,5 |
Koppelingen en smeernippels apart te bestellen.
